Touch Panel Four Key Controller
| Place of Origin | China |
|---|---|
| Brand Name | Okled |
| Model Number | TM02 |
| Inquiry | |
Detailed Product Description
Summarization
Touch panel controller is our new research and development of new high-end controller, the glass panel design, appearance beautiful, vogue. Adopting high precision capacitance touch control chip, increased the touch sensitivity, reduces by mistake triggered. It is used for control of the led lighting lamps and lanterns, for example: point light source, soft article light, wash wall lamp, glass curtain wall lamp, etc.; Has the wiring convenient, use the advantages of simple; According to the actual needs of customers can realize jump to change, gradual change, flash lights change such as frequency effect.
Technical Parameters
● working temperature: -20-60 ℃
● supply voltage: DC12-24V
● output: 3 channels
● connection mode: common anode
● external dimension: L86 Χ W86 Χ H36 mm
● packing size: L90 Χ W90 Χ H45 mm
● net weight: 125g
● gross weight: 150g
● static power: <1W
● output current: <4A( each channel )
● output power: 12V<144W,24V<288W

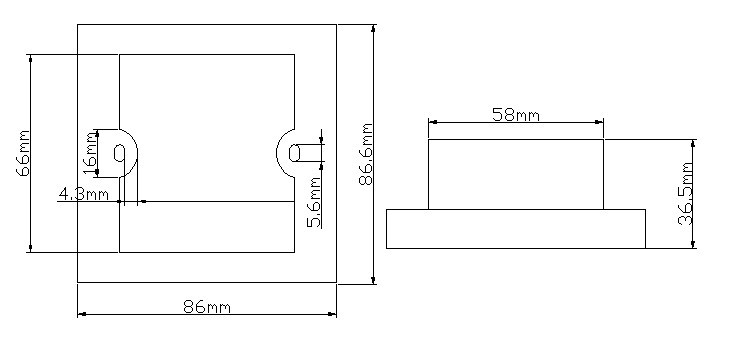

External Dimension:
.jpg)

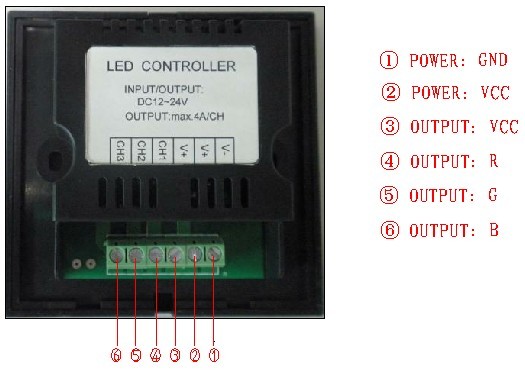

Interface Specification
.jpg)
Direction for Use
1、Controller panel have 4 buttons, and the function as follows:
.jpg)
：you can turn on/off controller output at any time;.jpg)
：M is mode choose key, so when the current control mode is pulley mode(color), if you want to realize the mode(color) of M key, can press this button..jpg)
：the output signal brightness or speed control, every time you press this button, the brightness or speed series add 1, altogether 100 levels;
.jpg)
：the output signal brightness or speed control, every time you press this button,the brightness or speed series minus 1, altogether 100 levels;
2、controller mode choice change as follows:
|
No
|
Patterns
|
Remarks
|
No
|
Patterns
|
Remarks
|
|
1
|
Static red
|
Brightness is adjustable,Speed is unadjustable.
|
12
|
Red stroboflash
|
Speed and
Brightness
are adjustable
|
|
2
|
Static blue
|
13
|
Blue stroboflash
|
||
|
3
|
Static purple
|
14
|
Purple stroboflash
|
||
|
4
|
Static green
|
15
|
Green stroboflash
|
||
|
5
|
Static yellow
|
16
|
Yellow stroboflash
|
||
|
6
|
Static cyan
|
17
|
Cycan stroboflash
|
||
|
7
|
Static white
|
18
|
White stroboflash
|
||
|
8
|
Three-color jumpy changing
|
Speed and brightness are adjustable
|
19
|
R/B crossfade
|
Speed is adjustable,
brightness is unadjustable
|
|
9
|
Seven-color jumpy changing
|
20
|
B/G crossfade
|
||
|
10
|
Three-color gradual changing
|
Speed is adjustable,brightness is unadjustable
|
21
|
G/R crossfade
|
|
|
11
|
Seven-color gradual changing
|
|
|
|
Typical Application
Installation Method
1, open the touch panel

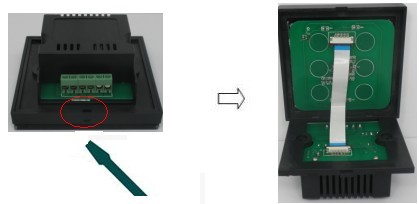

(1) as shown in figure, use screwdriver in touch panel gently pry gaps, Take the panel;
.jpg)
Installation Method
1, open the touch panel
(1) as shown in figure, use screwdriver in touch panel gently pry gaps, Take the panel;
.jpg)

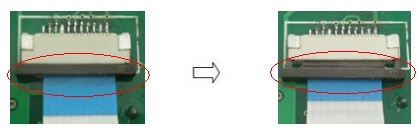

(2) as shown in figure: the flat cable taken down. Open the lock connection seat, take the flat cable
.jpg)
2, wiring

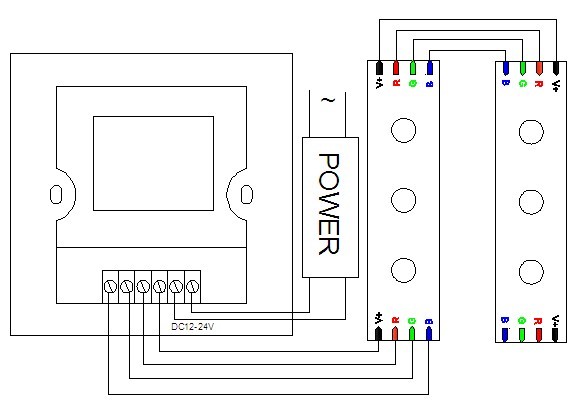

In the Typical Application. Reference typical application circuit.
3, installation switch base
As shown in figure, connected line will touch installed on the wall in the cassette controller, Screw in screw, make fixed in the wall, will be installed base to the wall.
.jpg)
4, cover touch panel
According to step up good row line, lock flat cable lock, cover panel.
Remarks:
1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
2, Power supply voltage range is DC12~24V, more than voltage range maybe will burnout the controller.
