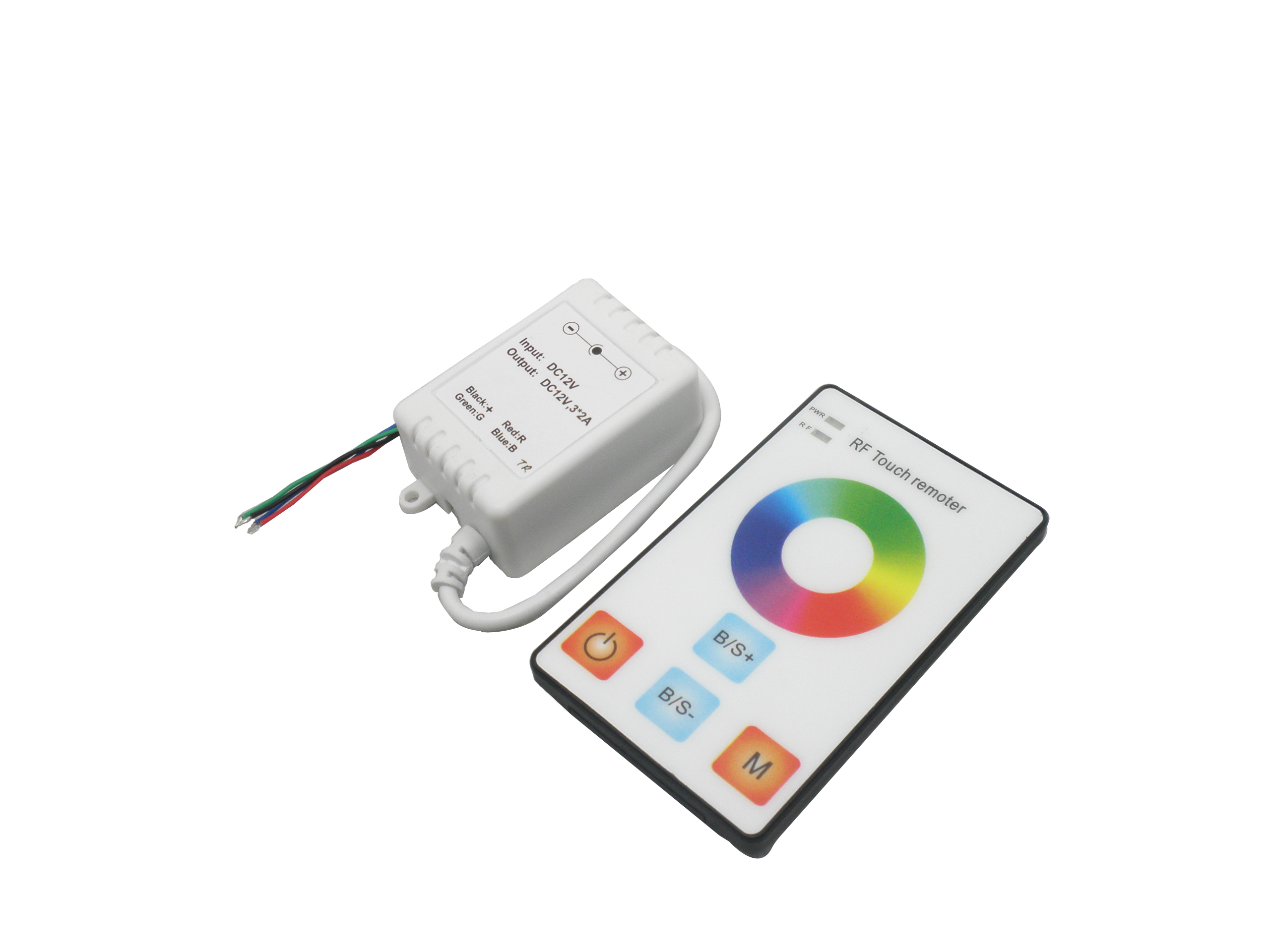

Touch LED Controller

This product is a novel LED controller developed by our company which can realize multistage touch dimmer. Adopting advanced touch design, through the panel controller combined with touch remote way, realize flexible control. Touch remote has good performance, beautiful, fashion, easy to use. This product suit for every occasions, such as: point light source, flexible strip, wall washer lamp, glass curtain wall light and such lighting controller.



①Touch-button, ultrathin, light quality, protable.

②Touch-key count up to 64, up to 64 kinds of mode function, small volume , more key funcation.

③Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single point also can continuous touch to realize color mode select, users can speedily choose the needed color, and the static and dynamic mode can change freely.

④Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize save electricity, extending battery life.

● working temperature: -20-60℃

 ● supply voltage: DC5V, 12V ,18V, 24V optional(specify the required voltage on orders)

 ● output: 3 channels

 ● connection mode: common anode

● static power consumption: <1W

● output current: <2A( each channel )

● output power: 5V:<30W, 12V:<72W, 24V:<144W

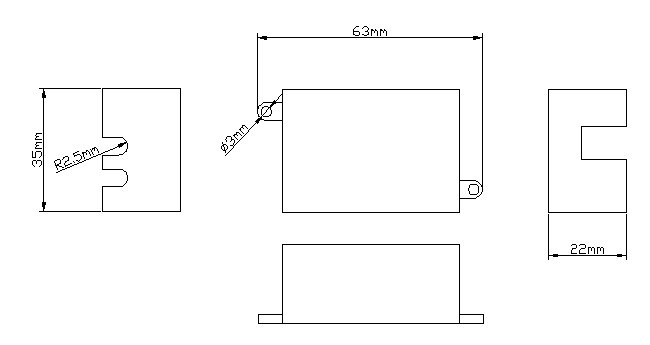

 ● controller dimension: L63ΧW35ΧH22 MM

● packing size: L105ΧW65ΧH40 mm

● net weight: 50g

● gross weight: 70g

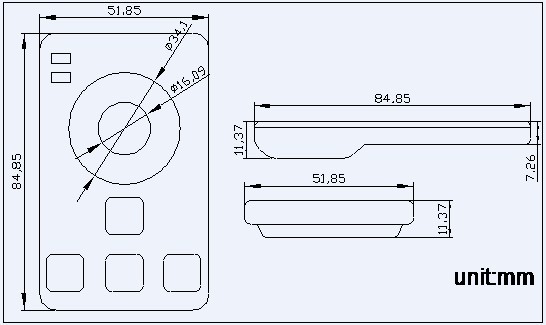

 ● working temperature: -20-60℃

 ● power supply mode: 28*8mm battery

 ● supply voltage: 12V

 ● static power consumption: 0.036mW

 ● standby current: 3uA

 ● work current: 300uA

 ● emission current: 12mA

 ● remote distance: 30m

 ● standby time: 6 months



: you can turn on/off controller output at any time;



: this key have 2 functions:

①M is mode choose key, so when the current control mode is pulley mode(color), if you want to realize the mode(color) of M key, can press this button.

②M is mode switch key, so when the current control mode is “M” key mode, can press this button to switch the mode(color) which state in the M key mode table.

: the output signal brightness or speed control, every time you press this button, the brightness or speed series add 1, altogether 100 levels;



: the output signal brightness or speed control, every time you press this button, the brightness or speed series minus 1, altogether 100 levels;



: Multicolor pulley touch key, static mode choose key, more than 60 touch points.

               ①Pulley static color choice key, so when the current control mode is M key mode(color), if must realize pulley static color, can press this key.

               ②Pulley color switch key, can change from 60 kinds of static colors (as the pulley shown)

 stop to use the remote more than 20s, the remote will enter the standby state (untouchable state), to extend the battery life; slightly shake once, then the remote will come back to the normal working state (touchable state).

① The remote is in working mode (touchable) when the PWR is bright, PWR is off, then means the remote is in standby state (slightly shake once, then it can touch normally);

②RF is bright, that means detected touch button, off means there is no touch button can press.

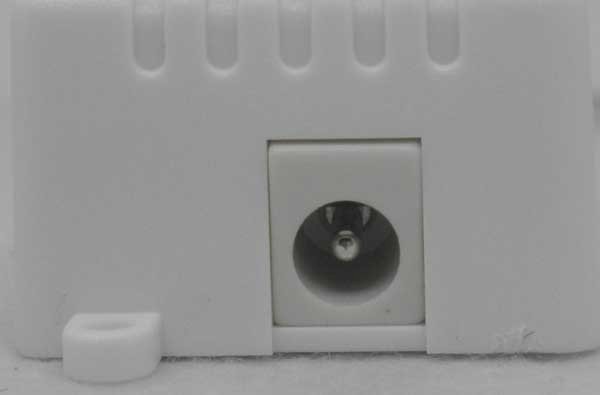

Power input interface:



Adopt conventional DC power transposon as power input interface,and equip with DC plug.

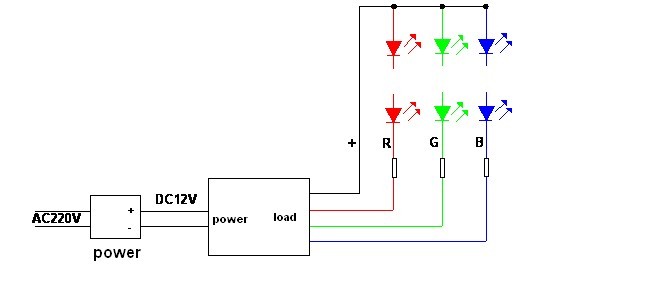

      Load output interface:

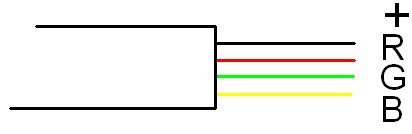

         Adopt four sheath wires as connecting wires, remark: black wire→ + red wire→R

 green wire→G yellow wire→B



1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；

2, Power supply voltage range is DC12~24V, more than voltage range maybe will burnout the controller.

3, Touch remote when not use for a long time, suggest to take down the battery.
