RF Waterproof Controller

Detailed Product Description

Summarization

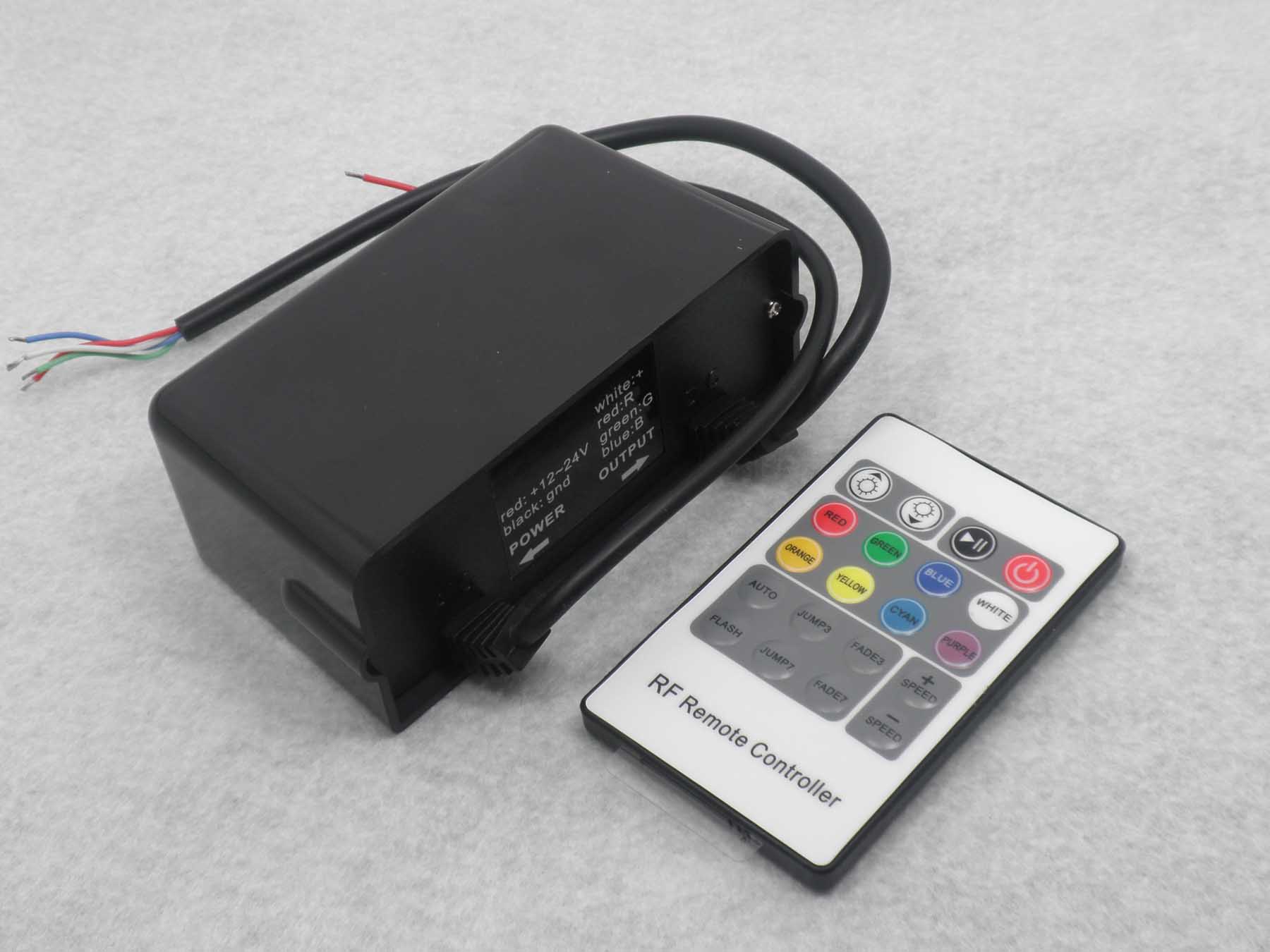

RF waterproof controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time,it has many advantages such as convenient connection, simplicity to use and others. According to actual need of customers, it can carry out jumpy changing, gradual changing,stroboflash and other effects of change.


Technical parameters
● Working temperature: -20-60 ℃
● Supply voltage: DC5V, 12V, 18V, 24V <optional> (for orders specify voltage)
● Output: 3 channels
● Connect mode: common anode
● Transmission/receiving frequency：433MHz
● Remote distance: 10～15M
● Controller dimension: L108 Χ W76Χ H43 mm
● Remote dimension: L85ΧW52ΧH7 MM
● Packing size: L145 Χ W95 Χ H50mm
● Net weight: 140g
● Gross weight: 175g

Controller External Dimension:

Interface Specifications

          Power input interface:

Adopt two sheath wires as connecting wires, meanwhile, red wire→ + black wire→ -

           Load output interface:

Adopt four sheath wires as connecting wires,meanwhile,White wire→ +  Red wire→R

 Green wire→G  Blue wire→B

Direction for use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not           occur between connecting wire before you turn on the power;

2. Standard changes as follows:

Typical Applications
