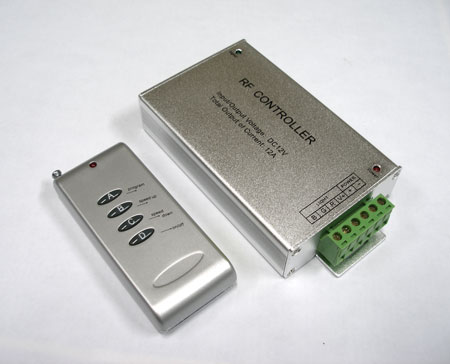

RF Controller(Aluminum version)

Detailed Product Description

Summarization

RF constant current controller adopts the advanced micro control unit,it is used for controlling a variety

of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain  wall light and so on; At the same time,it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.



Technical Parameters

Working temperature:-20-60 °C

Supply voltage: DC5V, 12V, 18V,24V optional(for orders specify voltage)

0utput: 3 channels

Transmission/Receiving frequency: 433 MHz

Remote distance: 100M

External dimension: L130Χ64ΧH24MM

Packing size: L160ΧW95ΧH50MM

Net weight:  185G

Gross weight:  220G

Static power consumption:<1 W

Output current: 350mA (each channel)

Output power: 5 V: <5.25W, 12V: <12.6W, 24V: <25.2W

Connect the number of load: 12V: 1~3LED/1W  24V:1~7LED/1W







External Dimension





Interface Specifications

         Power input interface





Adopt conventional DC power Transposon as power input interface, and equip with plug-DC









  Adopt male and female connector with screw.







Direction for use



1,        Connect the load wire at first, following by the power wire; Please ensure short circuit can not           occur between connecting wire before you turn on the power;



2,        Adopt RF control,there are four buttons altogether, and every key-press function is as follows:

        Program: pattern key,lighting color will change if you press one time;

        Speed up: to speed up lighting color changing;

        Speed down: to speed up lighting color changing;

        On/off: Power switch,you could turn on/off controller in any state.

3,        Standard color changes as follows:



Items	Patterns	Remarks
1	Static red
2	Static blue
3	Static yellow
4	Static green
5	Static purple
6	Static cyan
7	Static white
8	Three-color jumpy changing	2(B) and 3(C) keys are available
9	Seven-color jumpy changing	2(B) and 3(C) keys are available
10	Three-color gradual changing	2(B) and 3(C) keys are available
11	Seven-color gradual changing	2(B) and 3(C) keys are available
