RF 8-key panel controller

Detailed Product Description

Summarization

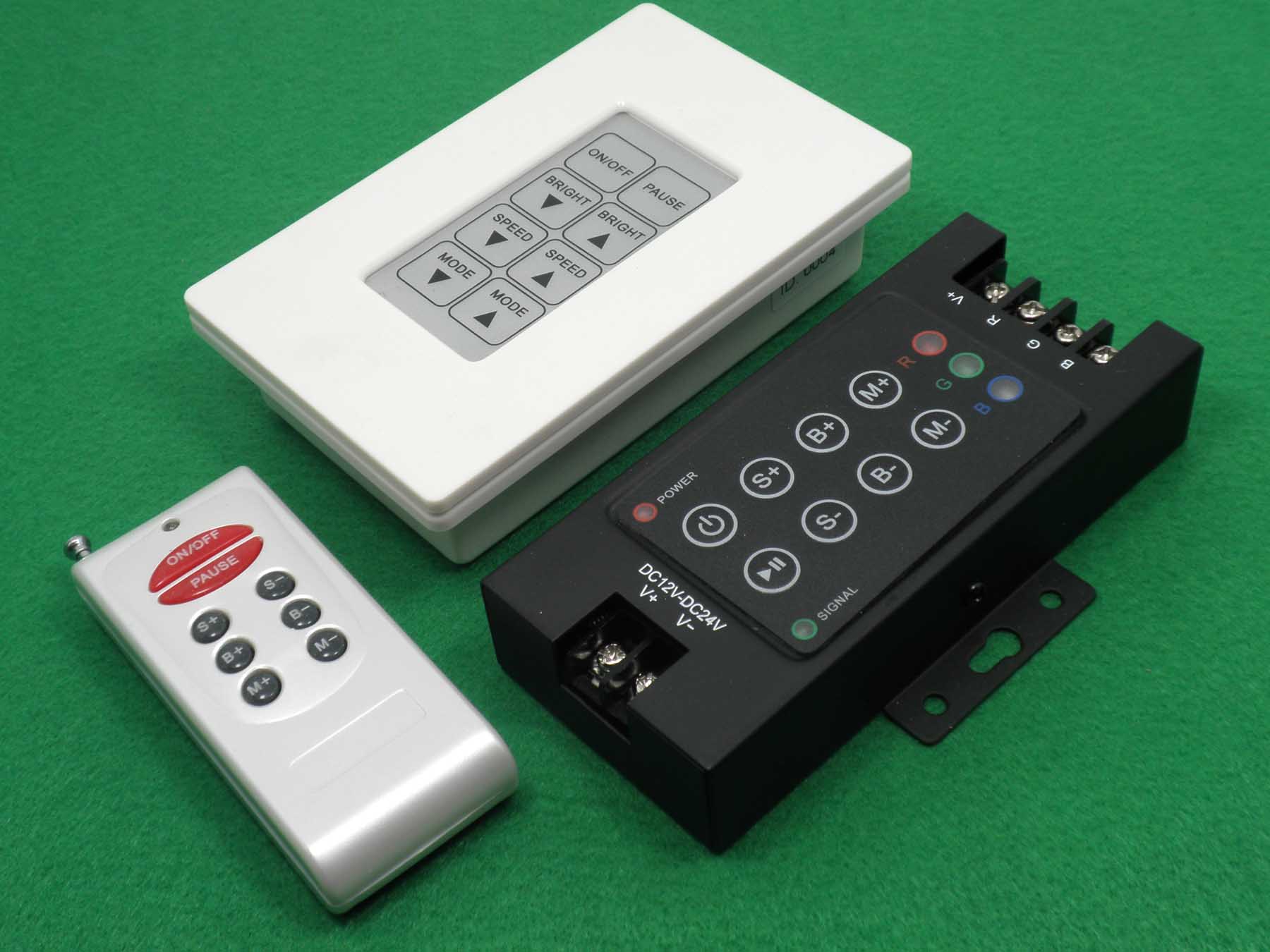

   RF 8-key controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible strip light, wall washer lamp, glass curtain wall light and so on;It has power-fail memory, synchronized indicator light show and other functions. At the same time,it has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.

Technical Parameters
● Working temperature: -20-60 ℃
● Supply voltage: DC5V, 12V ,18V, 24V<optional>（Order goods need marking out the required voltage）

● Output: 3 channels
● Connecting mode: common anode
● External dimension: L121ΧW53ΧH25 mm
● Packing size: L150ΧW76ΧH51 mm
● Net weight:255g
● Gross weight:285g
● Static power consumption: <1W
● Output current: <4A(each channel)
● Output power: 5V:<60W, 12V:<144W, 24V:<288W


External Dimension

Panel Dimention

Interface Specifications

  Power input interface:

 Adopt two sheath wires as connecting wires, meanwhile,brown wire→ +  blue wire→ -

  Load output interface:

Adopt four sheath wires as connecting wires,meanwhile,black wire→ +  brown wire→R yellow wire→G  blue wire→B

Direction for use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Adopt film button and RF for controlling,there are 8 buttons in all, the funtion of each key as follows:

(1): you could turn on/off controller at any time;

(2): Play/pause button,it is convenient for you to see the static effection of led;

S(3)+: The step of the speed change add 1 by each pressing;

S-(4): The step of the speed change subtract 1 by each pressing;

B+(5): A brightness control button,the step of the brightness add 1 by each pressing;

B-(6): The step of the brightness subtract 1 by each pressing;

M+(7): The NO. of patterns add 1 by each pressing;(refer to the following form)

M-(8): The NO. of patterns subtract 1 by each pressing;

3. There are eight keys on wall mounting panel, the function of each key as follows:

   ON / OFF: switch button;

PAUSE: can play or pause led changing, easy to observe the static effect of the led

BRIGH   increase entire brightness, a total of 10 steps;

BRIGHT   increase entire brightness, a total of 10 steps;

SPEED   increase the rate of change, a total of 10 steps(its period is from 5S to IH)

SPEED   reduce the rate of change, a total of 10 steps;

MODE    select button, select up a total of 25 models;

MODE   select button, select down

4. Standard changes funtion as the following form:
