RF 6-Key Controller





Summarization

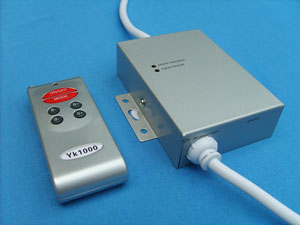

   RFcontroller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on;It has many advantages such as easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.





Technical parameters

working temperature: -20-60°C

supply voltage: DC5V, 12V ,18V, 24V optional(specify the required voltage on orders)

output: 3 channels

connection mode: common anode

external dimension: L95ΧW67ΧH26 mm

packing size: L145ΧW95ΧH50 mm

net weight: 265g

gross weight: 295g

static power consumption: <1W

output current: <4A(each channel)

output power: 5V:<60W,  12V:<144W,  24V:<288W





External Dimension









Interface Specifications



         Power input interface:









 Adopt two sheath wires as connecting wires, remark: Red wire→ +  Black wire→ -

  Load output interface:







Adopt four sheath wires as connecting wires,White wire→ +  Red wire→R

Green wire→G   Blue wire→B





Direction for Use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

2.  There are six keys on the remote controller panel, the funtion of each key as follows:

ON/OFF: you could turn on/off controller at any time;

  MODE: the color change button,there are 21 modes of change for you to choose;

B+: A brightness control button,the step of the brightness add 1 by each pressing,a total of 256 steps;

B-: The step of the brightness subtract 1 by each pressing;

S+: The step of the speed change add 1 by each pressing,a total of 100 steps.

S-: The step of the speed change subtract 1 by each pressing.

3. Standard changes funtion as the following form:



No	Patterns	Remarks	No	Patterns	Remarks
1	Static red	Brightness is adjustable,Speed is unadjustable.	12	Red stroboflash	Speed and Brightness are adjustable
2	Static blue		13	Blue stroboflash
3	Static purple		14	Purple stroboflash
4	Static green		15	Green stroboflash
5	Static yellow		16	Yellow stroboflash
6	Static cyan		17	Cycan stroboflash
7	Static white		18	White stroboflash
8	Three-color jumpy changing	Speed and brightness are adjustable	19	R/B crossfade	Speed is adjustable, brightness is unadjustable
9	Seven-color jumpy changing		20	B/G crossfade
10	Three-color gradual changing	Speed is adjustable,brightness is unadjustable	21	G/R crossfade
11	Seven-color gradual changing
