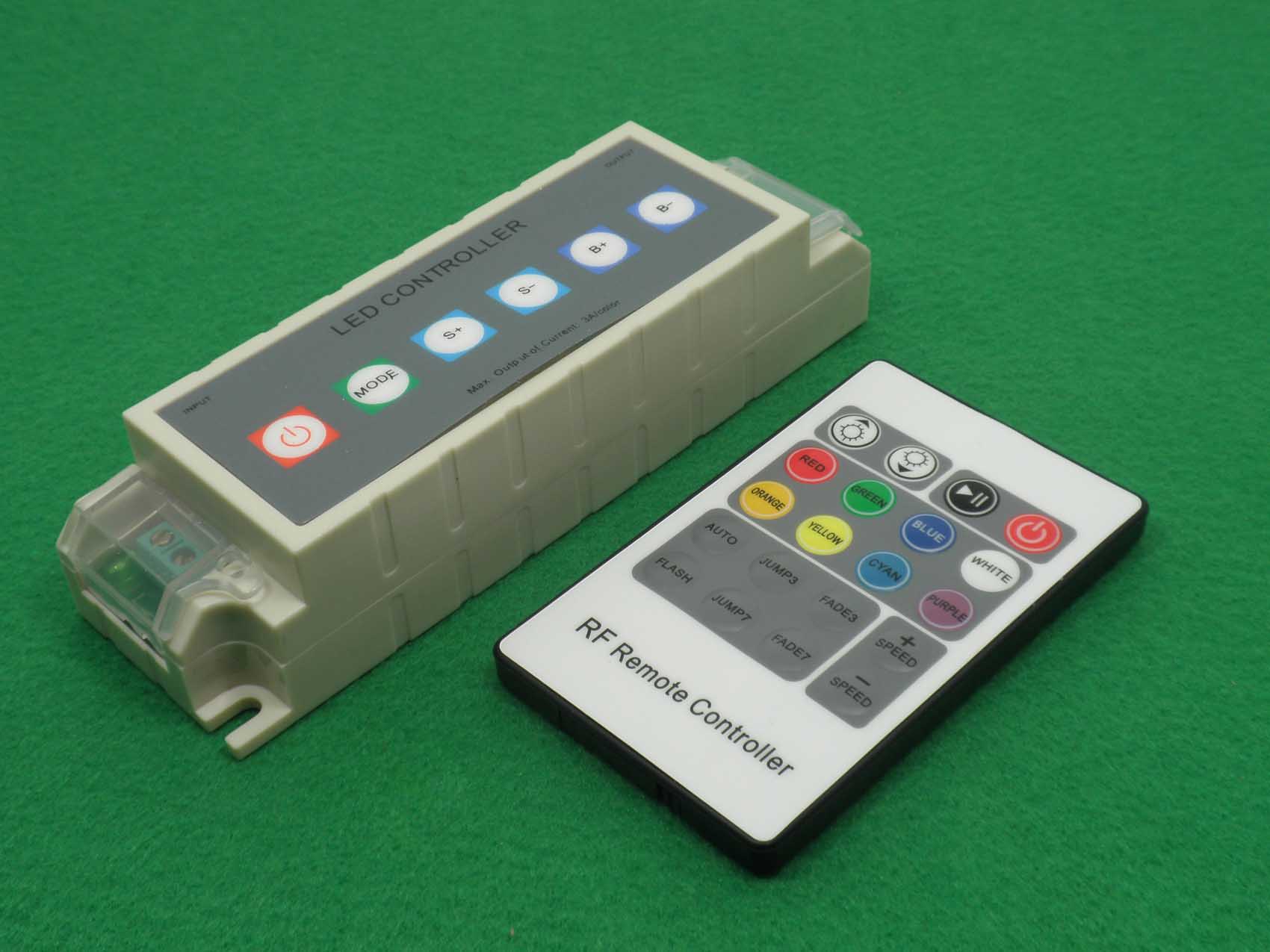

RF 20 key +common 6 key controller

Detailed Product Description

Commont 6 key controller adopts the advanced micro-control unit, cooperate with 20 key ultrathin remote controller. Using for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible strip light, wall washer lamp, glass curtain wall light and so on; It t has many advantages such as easy connection and simplicity to use; According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.





Technical parameters

● working temperature: -20-60 ℃

● supply voltage: DC5V, 12V ,18V, 24V < optional > ( supply voltage should be marked on order )

● output: 3 channels

● connection mode: common anode

● external dimension: L130 Χ W40 Χ H31 mm

● packing size: L140 Χ W50 Χ H60 mm

● net weight: 85 g

● gross weight: 110 g

● static power: <1W

● output current: <3A( each channel )

● output power: 5V<45W,12V<108W,24V<216W





External Dimension





Interface Specifications

        Power input interface:



Adopt male and female connector with screw.



        Load output interface:



Adopt male and female connector with screw.









Direction for Use

      1.  Connect the load wire at first, following by the power wire; Please ensure short circuit

can not occur between connecting wire before you turn on the power;

2. There are six keys on the controller panel, the function of each key as follows:

ON/OFF: you could turn on/off controller at any time;

  MODE: the color change button,

B+: A brightness control button,the step of the brightness add 1 by each pressing,a total of 256 steps;

B-: The step of the brightness subtract 1 by each pressing;

S+: The step of the speed change add 1 by each pressing,a total of 100 steps.

S-: The step of the speed change subtract 1 by each pressing.

3.  Standard changes function as the following form:

No	Patterns	Remarks	No	Patterns	Remarks
1	Static red	Brightness is adjustable, Speed is nonadjustable.	12	Red stroboflash	Speed and Brightness are adjustable
2	Static blue		13	Blue stroboflash
3	Static purple		14	Purple stroboflash
4	Static green		15	Green stroboflash
5	Static yellow		16	Yellow stroboflash
6	Static cyan		17	Cyan stroboflash
7	Static white		18	White stroboflash
8	Three-color jumpy changing	Speed and brightness are adjustable	19	R/B crossfade	Speed is adjustable, brightness is nonadjustable
9	Seven-color jumpy changing		20	B/G crossfade
10	Three-color gradual changing	Speed is adjustable, brightness is nonadjustable	21	G/R crossfade
11	Seven-color gradual changing





4. The buttons’ function of remote controller as the following form:

Brightness+	Brightness-	Pause/Run	ON/Off
Static  red	Static green	Static blue	Static white
Static  orange	Static yellow	Static indigo	Static purple
Auto	3 color jumpy change	3 color gradual change	Speed up
Flash	7 color jumpy change	7 color gradual change	Speed-down









Typical Applications
