Induction Switch

Detailed Product Description

Summarization
    The human bodyInduction Switch  is an infrared detection sensor switch controller, the use of infrared detection control the load of the switch.Users according to actual needs, the human body sensors installed in the appropriate environment



Technical parameters
● Working temperature: -20-60 ℃
● Supply voltage: DC5V,6V12V,24V(optional)
● Output: 1 channels
● Sensing distance: 5 ~ 8 M.
● Ham should angle: 120 degrees.
● External dimension: L89ΧW59ΧH35 mm
● Packing size: L96ΧW64ΧH65 mm
● Net weight: 80g
● Gross weight: 100g
●static power consumption: <1W
● output current: <8A
● output power: 5v<40w , 6v<48w , 12v<96w , 24v<192w

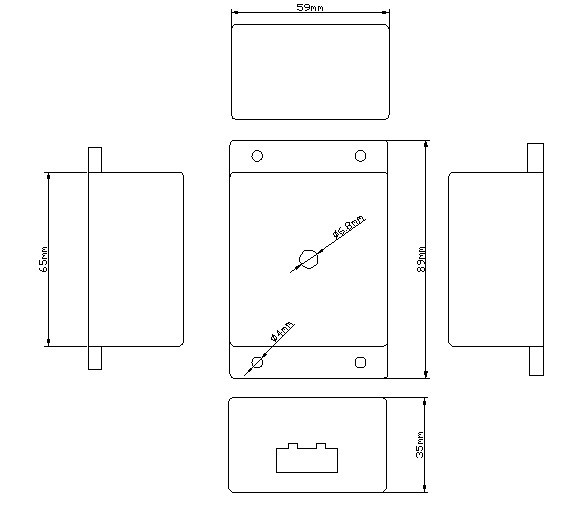

External Dimension

Interface Specifications

Power input interface:

Adopt male and female connector with screw.

Load output interface:

Adopt male and female connector with screw.

Direction for use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. when detected someone the light turn on, when people left 10 seconds, the light turn off.
3. Shoud connect the right control signal output line and input line.

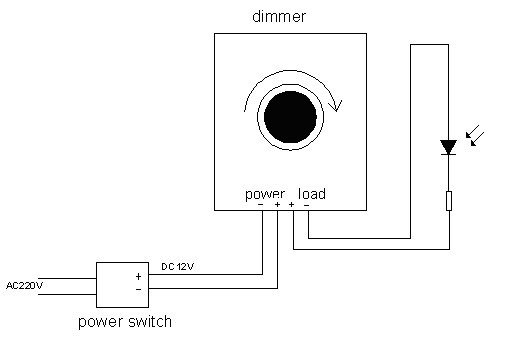

Typical Applications
