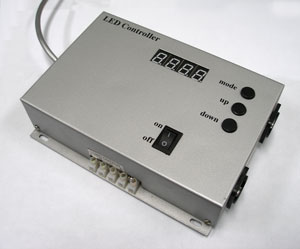

DMX Controller

Detailed Product Description



Summarization

DMX controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on; It has many advantages such as easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.







Technical parameters

   working temperature: -20-60°C

   supply voltage: DC5V, 12V ,18V, 24V optional(specify the required voltage on orders)

  output: 3 channels

  connection mode: common anode

 external dimension: L184ΧW123ΧH45 mm

 packing size: L231ΧW182ΧH56 mm

net weight: 755g

gross weight: 820g

static power consumption: <1W

 output current: <4A(each channel)

 output power: 5V:<60W,  12V:<144W,  24V:<288W







External Dimension















Interface Specifications

Power input interface:





      Adopt two rows of binding posts







DMX signal input interface:











DMX signal output interface:





Adopt 3-pin-block as connector.





Load output interface:





 Adopt binding post with screw.







Direction for Use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

2.  Adopt buttons and DMX ways for controlling.

MODE is Mode button,each pressing,lighting color changes one time,press UP will increase the speed and vice versa.

Occupy 3 DMX channel,you could adjust lighting for R,G,B,for example:adress code is one, then CH1 control brightness of R,CH2 control brightness of G,CH3 control brightness of B,the bigger DMX channel value ( from 0 to 255)is, the higher brightness is.

3.  The form of color changes as follows:



No	Patterns	Remarks
0	Auto
1	Horse race lamp
2	Running form
3	Jumpy changing
4	Gradual changing



  The way of looking over and modifying DMX adress code: Hold down the MODE key ,and do not release it,turn on the power switch,digital display screen will display C***,C is the first letter of DMX    adress code, *** is DMX adress code, for example: C001 means adress code is one, press Up or DOWN button could modify  the value of DMX adress code,Modify Ranges:1~999,press MODE again to save the modification,and then exit.







Typical Applications



  Typical application one(without DMX function):









 Typical application two(with DMX function):
