60W Non-waterproof power supply(metal shell)
| Place of Origin | China |
|---|---|
| Brand Name | Okled |
| Model Number | HS-60W |
| Inquiry | |
Detailed Product Description

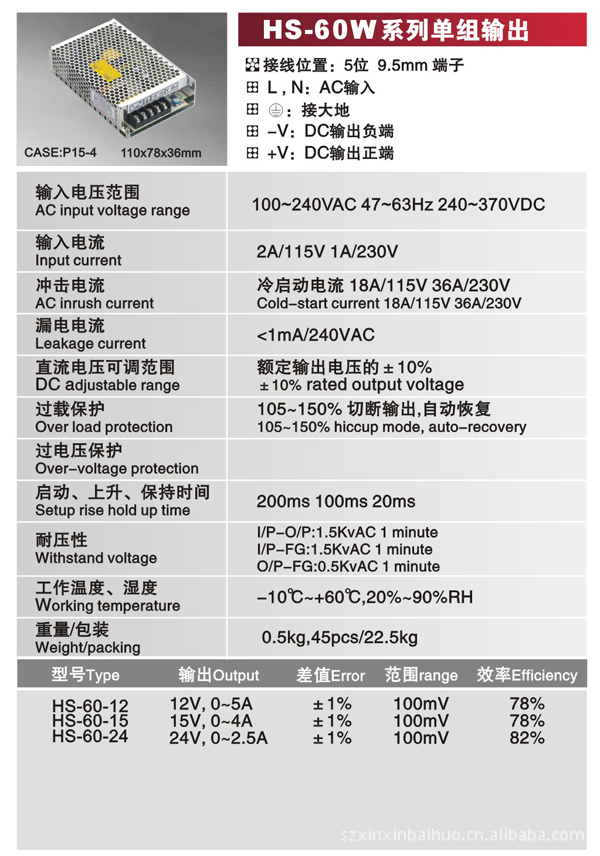

HS-60W switching power supply
|
Model Specification |

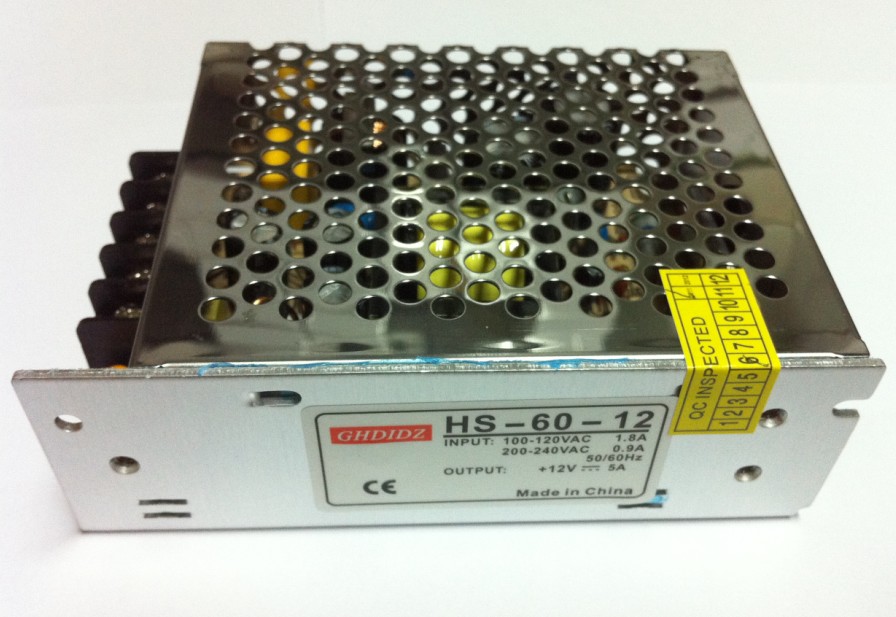

HS-60-12 |
HS-60-15 |

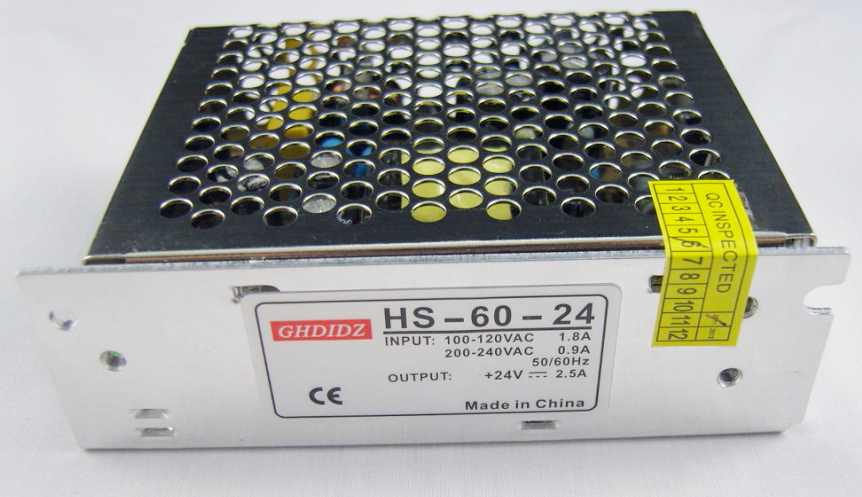

HS-60-24 |
|
DC output voltage |
12V |
15V |
24V |
|
Output voltage range(Note:2) |
±1% |
±1% |
±1% |
|
Rated output current |
5A |
4A |
2.5A |
|
Output current range |
0-5A |
0-4A |
0-2.5A |
|
Wave and noise(Note:3) |
100mvp-p |
100mvp-p |
100mvp-p |
|
Inlet stability(Note:4) |
±0.5% |
±0.5% |
±0.5% |
|
Load stability(Note:5) |
±0.5% |
±0.5% |
±0.5% |
|
DC output power |
60w |
60w |
60w |
|
Efficiency |
78% |
78% |
82% |
|
Adjustable range for DC voltage |
4.5~5.5v |
10.5~13.2v |
21.5~27v |
|
AC input voltage range |
100-240VAC selected by switch 47~63Hz;240~370VDC |
||
|
Input current |
2A/115V 1A/230V |
||
|
AC Inrush current |
18A /115V 36A/230V |
||
|
Leakage current |
<1mA/240VAC |
||
|
Overload protection |
105%~150% Type:pulsing hiccup shutdown Reset:auto recovery |
||
|
Over-voltage protection |
115%~135% Type:pulsing hiccup shutdown Reset:auto recovery |
||
|
High-temperature protection |
>=800C~850C,Cut off output(5~15V)~(24~48V) |
||
|
Temperature coefficient |
±0.03%/0C(0~500C) |
||
|
Setup,rise,hold up time |
200ms,100ms,20ms |
||
|
Working temperature and humidity |
-100C~+600C(Refer to output derating curve),20%~90%RH |
||
|
Store temperature and humidity |
-200C~+850C,10%~95%RH |
||
|
Overall dimension |
84*58*38mm |
||
|
Weight/packing |
0.5kgs, 45pcs/22.5KG |
||
|
Safety standards |
Design refer to UL 1950 |
||
|
EMC standards |
Desgn refer to FCC Part15J classA |
||
|
|
|||
