5 channels Audio Controller
| Place of Origin | China |
|---|---|
| Brand Name | Okled |
| Model Number | LN-CON-Audio-5CH-HV |
| Inquiry | |
Detailed Product Description
Summarization
5 channels audio controller chips using advanced computer control, with wiring, easy to use and simple; The controller audio interface with built-in microphone to receive the external audio signal, allowing the light changes with the music rhythm .
Technical parameters
● Working temperature: -20-60 ℃
● Supply voltage:AC110V/220V (for orders specify voltage)
● Output: 5 channels
● External dimension: L185ΧW78ΧH45 mm
● Packing size: L231ΧW182ΧH56 mm
● Net weight: 755g
● Gross weight: 820g
● Static power consumption: <1W
● Output current: <0.15A(each channel)
● Output power: 82.5W(each channel，110v) ， 165W(each channel ，220v)

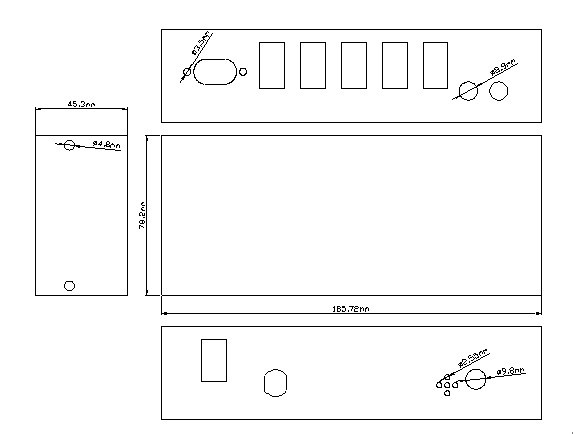

External Dimension
.jpg)

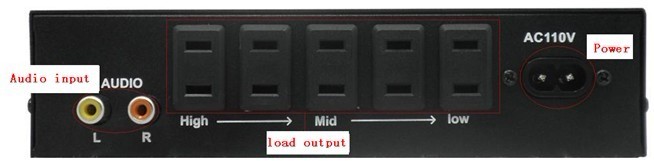

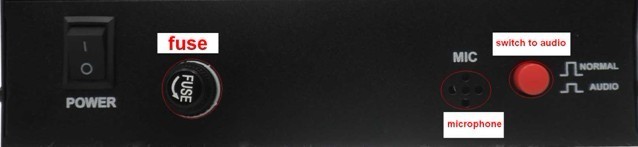

Interface Specifications
.jpg)
.jpg)
Direction for use
1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2, Connecting the power and the load line, press the power switch on the controller would allow the controller to work;.
3, Press the red button on the controller allows the controller and the audio mode in the switch between Steady;.
4, In the mouth with the audio capture audio signals, microphone capture is not valid in the audio mode, the lighting changes with the rhythm of the music

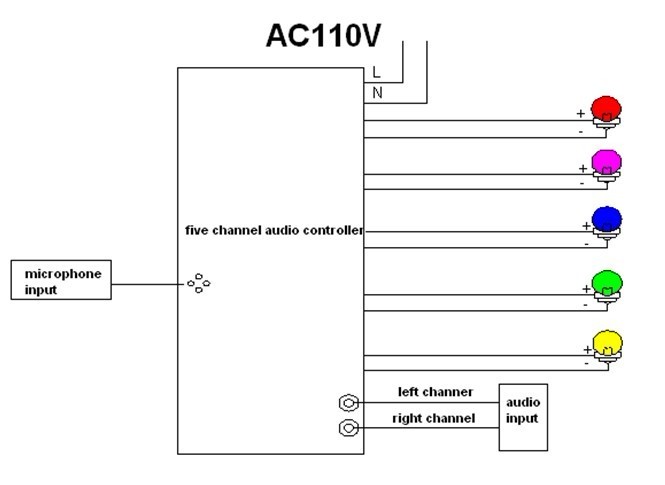

Typical Application
.jpg)
