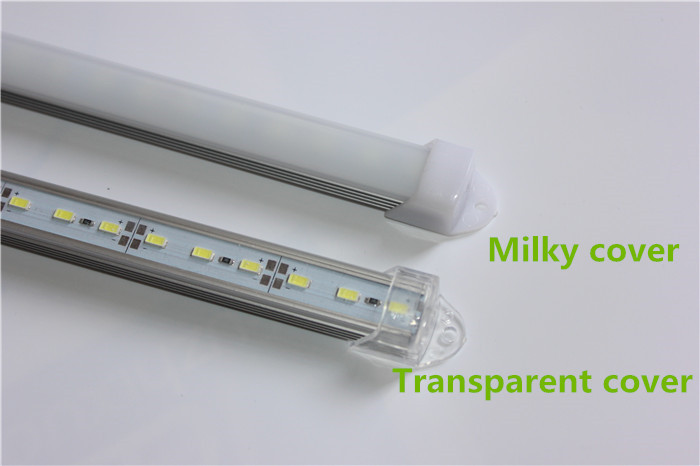

4.3/8.6/17.2Watt LED RGB Rigid Strip Lights

Detailed Product Description









1,Features:



01) Brushed Aluminum Light Bar

02) Light source: 18/36/72 pieces high bright LEDs

03)Color:cool white,warm white,red,green,blue

04) Lifetime: More than 50,000 hours

05) Beam angle: 110degree

06) Ultra-compact size: 250/500/1000mm(L) x 24mm(W) x 10mm(H)

07) Waterproof, IP65

08) DC12V working voltage

09)Full color range available

10) Safety Standard: CE, RoHS





2, Advantages:



Compatible with DMX and PWM control system
Surface installation with clips and screws
Easy connection between two strips by matched connectors(waterproof connectors or non-waterproof connectors)
Various lengths could be customized
Different light body finish and colors are available
Colors available: cool white, warm white, red, green, blue, green, RGB
CE, RoHS approved
Two years warranty









3, SMD5050 Rigid LED Strip Specification:



Model Number	LS-AL-18SMD	LS-AL-36SMD	LS-AL-72SMD
Photometric Characteristics
Light Source	18pcs 5050 SMD LED	36pcs 5050 SMD LED	72pcs 5050 SMD LED
Color Temperature	2800-3300K(warm white), 6000-6500K(cool white), red, green, blue and RGB
Lumen Output	260/290lm	540/590lm	1080/1220lm
Beam Angle	120°
Color Rendering Index	CRI>70	CRI>70	CRI>70
Effective Lifetime	>50,000hrs(70% Lumen Maintenance)
Mechanical Characteristics
Way of Installation	fixed by groove and screws
Dimension	250/500/1000mm(L) x 24mm(W) x 10mm(H)
Protection Rating	IP65
Net Weight
Electrical Characteristics
Lamp Wattage	4.3/8.6/17.2W
Input Voltage	DC12V or DC24V
Temperature Range
Storage Temperature	-40°C to 60°C
Working Temperature	50°C(at room temperature 25°C)

















4, Method of Installation:

1. Fix the two clips with screws
2. Put the strip into the clips

















5, Warranty: 2 years





6, Available Color:



RGB, White, Red, Blue, Green, Yellow, etc.





7, Applications:



Cabinet lighting, Shelf lighting
Display lighting
Decorative lighting
Cove lighting
Walkway
Household, hotel, restaurant, entertainment places, etc.







8, Packaging Details(With non-waterproof connectors):

Net Weight:0.08kgs(25cm), 0.17kgs(50cm), 0.31kgs(100cm)
Gross weight:0.09kgs(25cm), 0.185kgs(50cm), 0.33kgs(100cm)
Carton size: 54.5x13.5x12.2cm(25cm),80x13.5x12.2cm(50cm),130x13.5x12.2cm(100cm)
Quantity per carton: 35pcs
