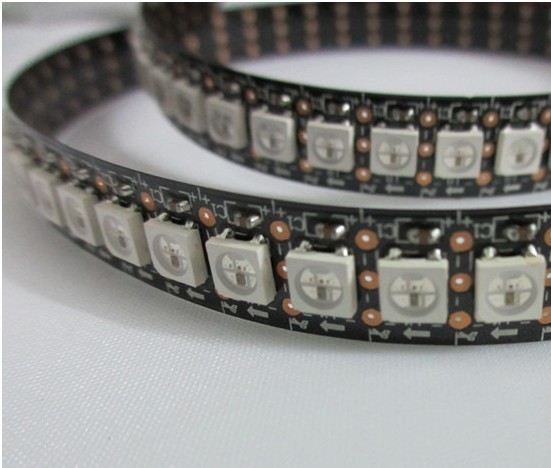

144 LEDs/M 5050 RGB WS2812B Chip Black PCB WS2811 IC Digital 5V LED Strip Light
| Place of Origin | China |
|---|---|
| Brand Name | Okled |
| Model Number | LS01-BW5050RGB72-2812B-IC5V |
| Inquiry | |
Detailed Product Description
1, Features:
Model: LS01-BW5050RGB72-2812B-IC5V (Not waterproof)
Color: Full Color
Waterproof: IP40 (non-waterproof)
Color: Red Green Blue
Wavelength: 620-630 (λ) 520-525 (λ) 465-470 (λ)
Light intensity: 500-600 (mcd) 900-1200 (mcd) 250-310 (mcd)
Flux: 1.68 (lm) 3.2 (lm) 0.84 (lm)
Dimensions: 5000 * 10mm
Viewing angle: 120 °
Operating voltage: DC5V
Power: 43.2W / M
LED Qty / m: 144LEDs / M IC Model: WS2811 IC per meter Quantity: 144 IC
black PCB
SPI control mode
Note: SIP control mode, the signal line and the clock do not reverse, light bar is a 5V voltage, if the controller is 12V Please separate power supply for the lights, as it is powered directly 12V, otherwise it will burn!
| Electrical Characteristics(TA=25°C) | |||||||
| Item | Symbol | Parameter | Unit | ||||
| Input Voltage | V | 5 | V | ||||
| Input Current | IF | 960 | mA | ||||
| Power | PD | 43 | W | ||||
| Electrostatic discharge | ESD | 2000 | V | ||||
| Operating Temperature | Topr | -25 ~45 | °C | ||||
| Storage Temperature | Tstg | -40 ~80 | °C | ||||
2, Operating Methods:
You can modify the light type that decoder supports through the DIP switch. The decoder can support 10 kinds of SPI strips in market. As follows:
|
Number |
Model |
Signal line |
|
1 |
LPD6803 |
DATA, CLK |
|
2 |
TM1803 |
DATA |
|
3 |
TM1809 |
DATA |
|
4 |
TM1812 |
DATA |
|
5 |
UCS1903 |
DATA |
|
6 |
WS2811 |
DATA |
|
7 |
WS2801 |
DATA,CLK |
|
8 |
TLS3001 |
DATA |
|
9 |
TLS3008 |
DATA |
|
10 |
P9813 |
DATA, CLK |
